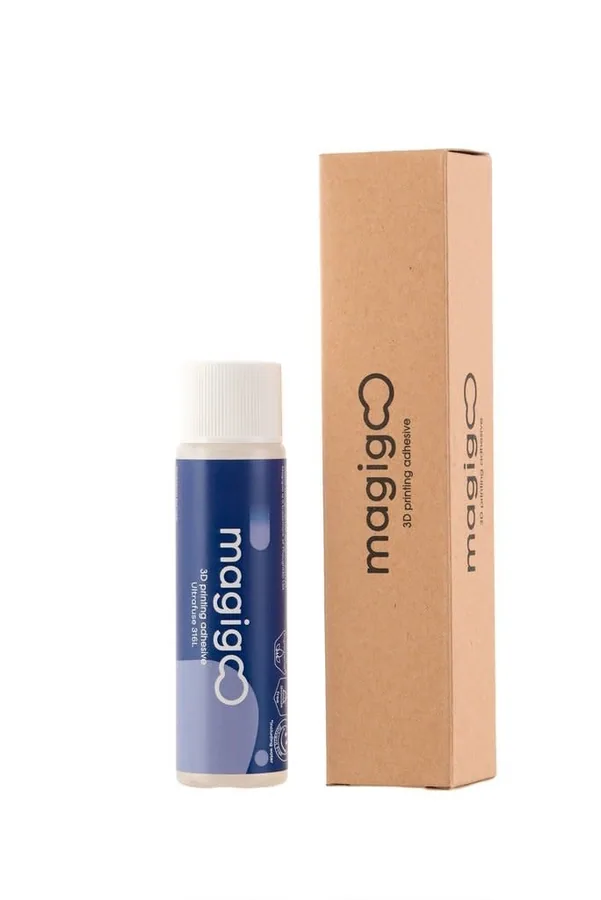

Magigoo Pro METAL

Magigoo Pro METAL for BASF Ultrafuse 316L metal filament

Magigoo Pro METAL is developed for first-layer adhesion with BASF Ultrafuse 316L filament. The product is non-hazardous, non-flammable and approved for use in the post-processing of BASF Ultrafuse 316L. Magigoo Pro METAL makes it easier to remove parts or green parts from the build plate.

Why Magigoo Pro METAL?

BASF Ultrafuse 316L enables the production of solid stainless steel parts of 316L quality with desktop FDM 3D printers and a sintering process. Ultrafuse 316L filament consists of refined metal particles embedded in thermoplastic binders. As a result, as a filament, the metal-polymer composite does not involve the occupational and safety risks associated with handling fine metal powders. This makes 3D printing stainless steel parts affordable, simple and safe.

Due to the thermoplastic nature of the binders and the differential thermal cooling during FDM printing, parts printed with BASF Ultrafuse 316L are sensitive to warping. Due to the delicate nature of the green part, care is required when removing parts printed with BASF Ultrafuse 316L to prevent deformation. Magigoo Pro METAL provides reliable adhesion during printing and allows removal of the printed part by immersion in water. This helps limit possible damage to the green part.

For use of Magigoo Pro METAL with BASF Ultrafuse 316L, a build plate temperature of 95-105 °C is recommended. Printing conditions may vary per printer.

Apply the product to the desired area by pressing the tip onto the bed, activating the inner valve, and spread it where needed.

Print according to the recommended settings.

After printing, immerse the entire bed in water or soak the parts in water. After a short period, usually 30 minutes to 2 hours depending on the size of the part, the part should come loose by itself or be easy to remove with a gentle twist.

Clean the build plate with a damp cloth to remove residues.

Use of this product with filaments other than BASF Ultrafuse 316L may cause excessive adhesion and damage the build surface. Follow the instructions in the technical data sheet for the best results.
