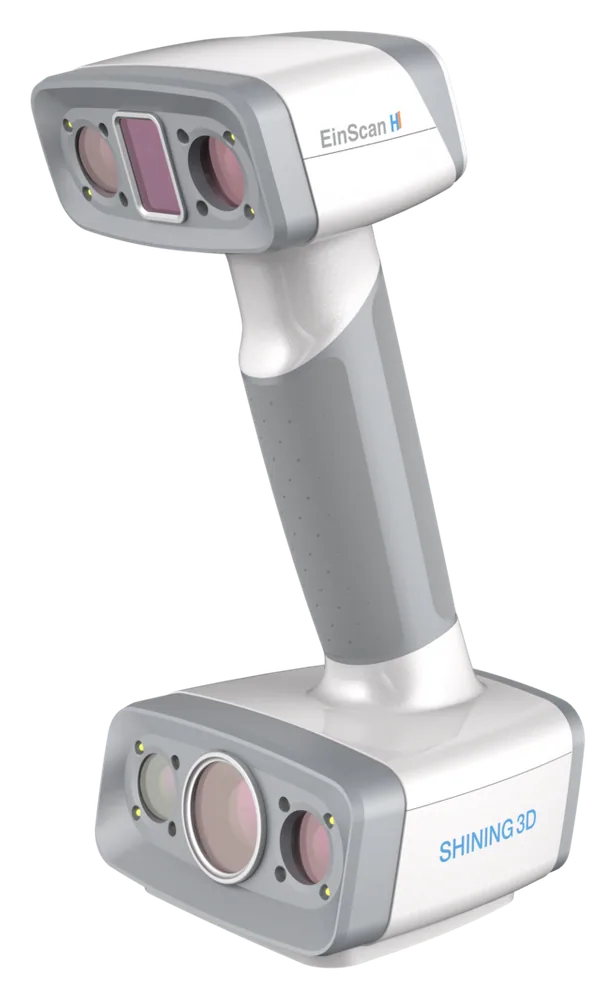

The EinScan HX is a handheld 3D scanner that combines hybrid blue laser and LED structured light in one device. The scanner is intended for applications such as reverse engineering and measurement, and delivers 3D data with color thanks to the built-in color camera.
The combination of structured light and laser technology supports a broad range of applications. The high accuracy meets the needs of most industrial applications for reverse engineering and measurement.
Color and texture tracking
The built-in color camera supports full-color texture capturing and tracking based on texture. This accelerates the workflow and enables new applications.
The high resolution of up to 0.25 mm captures fine details of objects such as artwork or furniture. The scanned data accuracy of up to 0.05 mm and volumetric accuracy of 0.1 mm/m improve the precision of 3D models in dense point clouds or polygon meshes.
The scan speed of up to 1,200,000 points/s and the large scan field of view of 420*440 mm support fast 3D scanning of large objects. The optimized alignment algorithm enables efficient alignment, even with small movements of the scanned object or person.
Operation and software
The software is intuitive and user-friendly for professional users and beginners. The scanner is portable and weighs 703 g .
The EinScan HX is available in different bundles, making the scanner suitable for many applications. Contact Lay3rs 3Dprinting to find the most suitable bundle for your team.
Light source Hybrid blue laser and LED structured light
Color camera Built-in
Resolution Up to 0.25 mm
Scanned data accuracy Up to 0.05 mm
Volumetric accuracy 0.1 mm/m
Specificaties
Specificaties
| Merk | Shining 3D |
| Technologie | Scannen |
